Automatic Vertical Lifting Industrial Sectional Doors Polyurethane Foam Insulation

Product Details

Place of Origin: CHINA

Brand Name: EVERBESTEN

Certification: CE &ISO

Model Number: S-100

Document: Catalogue(1)2025.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Simple package

Delivery Time: 25 days after order and drawing confirmed

Payment Terms: T/T,D/P

Supply Ability: 100 SETS PER MONTH

Get Best Price
Highlight:

insulated sectional garage doors

,

insulated sectional doors

Product Name:
Sectional Overhead Door
Application:
Using For Outside And Safe Application
Thickness Of Curtain:
40mm Thickness Insulated Sandwich Panel
Ambient Temperature:
≥0 ℃
Opening & Closing Speed:
0.2-0.5 M/s
Standard Frame:
2mm Aluminum Alloy Steel; C-profile Anti-wind Track
Model:
Outside Application Door
Lift Model:
Normal Lift, High Lift And Vertical Lift
Product Name:
Sectional Overhead Door
Application:
Using For Outside And Safe Application
Thickness Of Curtain:
40mm Thickness Insulated Sandwich Panel
Ambient Temperature:
≥0 ℃
Opening & Closing Speed:
0.2-0.5 M/s
Standard Frame:
2mm Aluminum Alloy Steel; C-profile Anti-wind Track
Model:
Outside Application Door
Lift Model:
Normal Lift, High Lift And Vertical Lift
Automatic Vertical Lifting Industrial Sectional Doors Polyurethane Foam Insulation

Automatic Rapid Vertical Lifting Industrial Sectional Doors Polyurethane Foam Insulation


Main features:


Using location External Door
Door curtain material Steel sandwich construction
Door Panel Sections: Pinch-resistant;500mm height for each piece panel;
Door panel thickness 40, 50, 80 mm Polyurethane foam
Track section 2mm Aluminum Alloy steel; C-profile anti-wind track
Lifting system Normal Lift, High lift, Vertical Lift
Door designing

Counterbalance System:Precision-engineered by professional program;

Torsion spring material is 60Si2Mn.

Torsion spring with special heat treatment & oil immersion anti-rust treatment,providing a minimum 20000 cycles.

Optional in galvanizing process surface spring to meet more and longer using.

Door operation Sectional door Unique motor
Window or Pedestrian Door Supporting
Heating function Heat conduction factor: 0.38W/mc
Acoustic insulation Acoustic insulation: 24dB (DIN52210)
Mechanical Part Torsion mechanism including shaft, spring plugs and cable drums
Opening& Cloding speed 0.2-0.5m/s
U value 0.38w/mc


Our professional system in the whole service processing


We have the best solution for you, and we provide all the support you need to achieve optimum results, or value, or both, from whatever products you buy. We promise you must have an unforgettable experience between our business.


Industrial and sectional door's charactor


The industrial door, as the best choice of the outdoor of the modern architecture, enjoys the perfect durability and sealing, the high speed, the elegant aprrearance, the simple operating system and the spring balanced system, which is used durably and cleaned easily with the special designing door panel.


The Features of Sectional Doors:

  • Segmented Structure: The door is made up of multiple horizontal panels connected by hinges, allowing it to bend and move smoothly along a track.

  • Vertical Opening, Space Saving: The door opens vertically and rests parallel to the ceiling, maximizing both interior and exterior space.

  • Excellent Sealing: Equipped with sealing strips around the edges, sectional doors offer good insulation, dustproofing, and weather resistance.

  • High Strength and Safety: Typically made of steel panels with polyurethane cores, they are strong yet lightweight and often come with anti-fall protection systems for enhanced safety.

  • Versatile Appearance: Available in various colors, finishes, and designs, making them suitable for industrial, commercial, and residential applications.

  • Manual or Automatic Operation: Can be operated manually or powered by an electric motor, offering flexible usage options.

  • Easy Maintenance: Damaged sections can be replaced individually without needing to replace the entire door.

Our specialty

  • We can provide the scheme for you according to the customer.
  • We can provide the installation drawing for you.
  • We can provide the right door-choosing suggestion.
  • We can provide the installation guidance.
  • We can provide the professional service supporting.
  • We can provide the operating guidance and instruction.
  • We accept your acquirment and consulting suggestion.

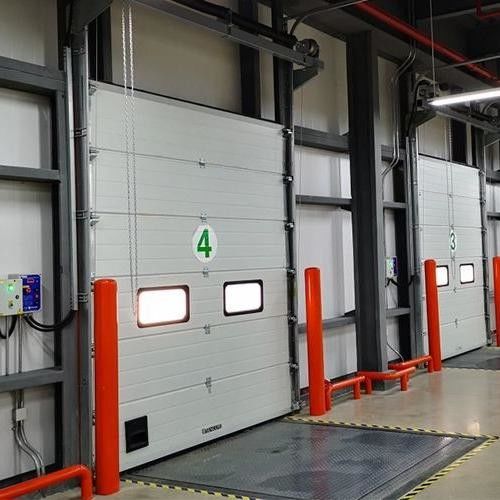

Automatic Vertical Lifting Industrial Sectional Doors Polyurethane Foam Insulation 0
