Product Details
Place of Origin: China
Brand Name: SUNCOME
Certification: CE/ISO9001:2008
Model Number: H6000
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Standard Plywood Package
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 100 units per month
Product Name: |
High Speed Security Door |
Application: |
Using For Outside And Safe Application |
Thickness Of Curtain: |
100mm Width Insulated Aluminum Or Steel Panel |
Ambient Temperature: |
≥0 ℃ |
Opening Speed: |
0.5m/s |
Closing Speed: |
0.3m/s |
Standard Frame: |
304 Stainless Steel |
Model: |
Outside Door |
Product Name: |
High Speed Security Door |
Application: |
Using For Outside And Safe Application |
Thickness Of Curtain: |
100mm Width Insulated Aluminum Or Steel Panel |
Ambient Temperature: |
≥0 ℃ |
Opening Speed: |
0.5m/s |
Closing Speed: |
0.3m/s |
Standard Frame: |
304 Stainless Steel |
Model: |
Outside Door |

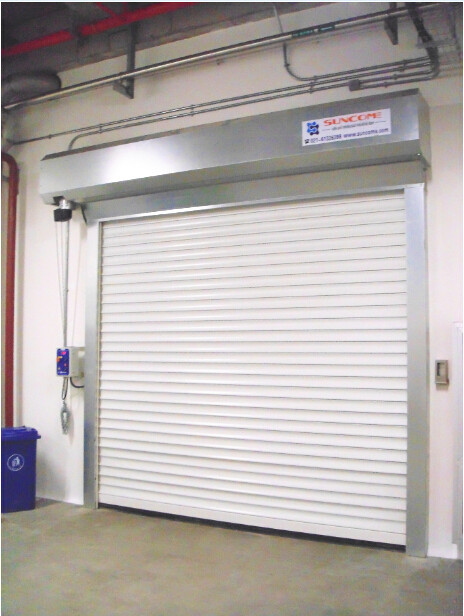

Grey , White 304 Stainless Steel Security Door For Production Line
Specifications:
Curtain Color |
Grey, White |
|
Power supply |
AC 380V,3 Phrase, 50HZ |
|
Temperature |
-7 to 65 Celsius degree |
|
Normal Working |
-5 to 65 Celsius degree |
|
Standard Motor Position |
Left |
|
Installation Base |
Concrete,Panel, Brick,Steel Structure. |
|
Installation Space |
≥600mm above the door |
|
Using Area |
For Production Line |
Technical Parameter for speed door
Max Size:5000mm(W)*5000mm(H)
Opening Speed:0.5m/s
Closing Speed:0.3m/s
Wind load Max:30m/s
Mechanical Unit
Frame:304 Stainless Steel
Inner Frame:Anti-wear Nylon Molded Inner frame
Thickness of frame:2.0mm Stainless Steel/Galvanized Steel
Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel
Motor cover:Yes
Frame Size:125mm*150mm
Control Unit
Control system
Control Box Size:320 X 400 X 210 mm
Driving System
Feature:Absolutely Encoder
Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert
Activation System
Open and Close the door:
Safety System
Safe Equipment:
1) Special design for factory’s outside application
2) high frequent using of the outside logistics demands.
3) High speed auto opening and closing for the logistics transferring.
4) Quick reaction by the controlling of the activation way.
5) Auto time-delayed function adjustment based on good transferring time.
6) Sustained innovation on the product.
7) Energy saving for the temperature difference.
8) High efficient for the door operation.
9) Adopting “Absolutely Encoder” to avoid the top and end position readjusting after the power off.
10) Unique Man-Machine Interface to ensure the smooth operation. Error shooting function is also a tool for engineer to find the key of problem shortly.
11) Door controlling system is easy to meet the different demands.
12) Standard activation terminals are equipped with the control system to avoid trouble when the door’s opening and closing way changed.
13) Unique design and innovation on “Main Board”.
14) One-Key push button to Up and Down the door manually.
15) RED EMERGENCY STOP push button for “STOP” function in Emergent status.
About Suncome
With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.
Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.
We boast professional sales engineers, installation teams and after-sales service personnels who can provide our clients with customized service .
Automatic and High Performance Speed Door is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.
