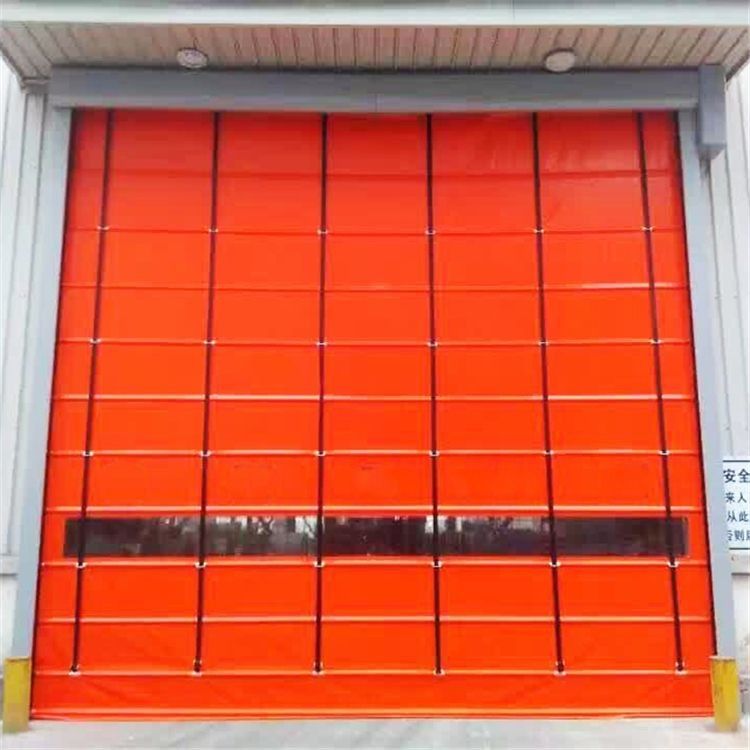

PVC Stacking High Speed Shutter Door Automatic Perforated Rolling Door

PVC Stacking High Speed Shutter Door Automatic Perforated Rolling Door

    • PVC Stacking High Speed Shutter Door Automatic Perforated Rolling Door
    • PVC Stacking High Speed Shutter Door Automatic Perforated Rolling Door
  • PVC Stacking High Speed Shutter Door Automatic Perforated Rolling Door

    Product Details:

    Place of Origin: China
    Brand Name: SUNCOME
    Certification: CE/ISO9001:2008
    Model Number: H5000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: Standard Plywood Package
    Delivery Time: 25 working days after received your payment
    Payment Terms: T/T
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Product Name: Exterior High Speed Door Application: Using For Outside And Big Size Application
    Thickness Of Curtain: 1.5mm Pvc Ambient Temperature: ≥0 ℃
    Opening Speed: 0.8 M/s Closing Speed: 0.5m/s
    Standard Frame: 304 Stainless Steel Model: Inside Door

    PVC Stacking High Speed Shutter Door Automatic Perforated Rolling Door



    Main feature:



    H5000 high speed stack door is designed for exterior application with larger size in wind load areas. Over 500 timesvertical folding operations in a day will avoid the defect of traditional industrial doors. The stronger horizontal

    wind-resistance bar ensures high performance of the door. It can be collected totally to save space and keep the surrounding clean.



    Curtain Color

    Grey, White,Blue,Yellow

    Anti wind bar

    anti wind-pipe at high density stacking

    Power supply

    AC 220V-240V, Single-Three Phrase, 50HZ

    Temperature

     -7 to 65 Celsius degree

    Normal Working

     -5 to 65 Celsius degree

    Standard Motor Position

     Left

    Installation Base

     Concrete,Panel, Brick,Steel Structure.

    Installation Space

    ≥600mm above the door

    ≥600mm for motor side

    ≥200mm for non-motor side

    ≥800mm in front of the door

    Using Area

    For exterior doors with big size



    Specifications:



    Technical Parameter for speed door

    Max Size:000mm(W)*8000mm(H)

    Opening Speed:0.8m/s

    Closing Speed:0.6m/s

    Wind load Max:28 m/s



    Mechanical Unit

    Frame:304 Stainless Steel/Aluminum

    Thickness of frame:2.0mm Stainless Steel/Galvanized Steel

    Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel

    Motor cover:Yes

    Frame Size:200mm*200mm



    Control Unit

    Control system

    • S150 FU Micro-processor
    • English Man-Machine Interface
    • Self Trouble-Shooting Recognizing system
    • Bigger LED Screen

    Control Box Size:320 X 400 X 210 mm



    Driving System

    Feature:Absolutely Encoder

    Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert



    Activation System

    Open and Close the door:

    • Radar
    • Induction Loop
    • Remote
    • Card Sensor
    • Pull Cord
    • Push Button
    • Touching Panel for Cleaning Room
    • Central-Computer Controlling

    Safety System

    Safe Equipment:

    • Beep
    • Anti-wind Bar
    • Traffic Light
    • Wireless safety Edge
    • Built-in Photo Cell
    • Emergency Handle
    • Shoulder Protection

    Our specialty

    • We can provide the scheme for you according to the customer.
    • We can provide the installation drawing for you.
    • We can provide the right door-choosing suggestion.
    • We can provide the installation guidance.
    • We can provide the professional service supporting.
    • We can provide the operating guidance and instruction.
    • We accept your acquirment and consulting suggestion.
