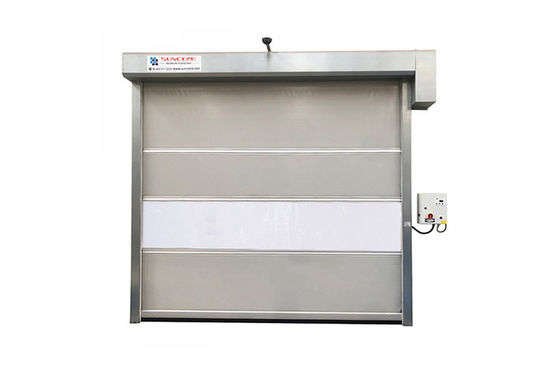

Modern Workhouse High Speed Roll Up Door Aluminum Frame Work On Machine

Product Details

Place of Origin: China

Brand Name: SUNCOME

Certification: CE/ISO9001:2008

Model Number: H1500

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Standard Plywood Package

Delivery Time: 25 working days after received your payment

Payment Terms: T/T

Supply Ability: 100 units per month

Get Best Price
High Light:

rolling steel doors

,

industrial roller shutter

Product Name:
High Speed PVC Door
Application:
Using For Outside And Safe Application
Thickness Of Curtain:
1.5mm Weaved Fabric
Ambient Temperature:
≥0 ℃
Opening Speed:
1.5m/s
Closing Speed:
1.0m/s
Standard Frame:
304 Stainless Steel
Model:
Inside Door
Product Name:
High Speed PVC Door
Application:
Using For Outside And Safe Application
Thickness Of Curtain:
1.5mm Weaved Fabric
Ambient Temperature:
≥0 ℃
Opening Speed:
1.5m/s
Closing Speed:
1.0m/s
Standard Frame:
304 Stainless Steel
Model:
Inside Door
Modern Workhouse High Speed Roll Up Door Aluminum Frame Work On Machine

Modern Workhouse High Speed Roll Up Door Aluminum Frame Work On Machine


Technical Parameter for speed door

Max Size:3500mm(W)*3500mm(H)

Opening Speed:1.5m/s

Closing Speed:1.0m/s

Wind load Max:10m/s



Mechanical Unit

Frame:304 Stainless Steel/Aluminum

Thickness of frame:2.0mm Stainless Steel/Galvanized Steel

Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel

Motor cover:Yes

Frame Size:100mm*60mm



Main feature:

In the logistics process of the protection of the production environment and safety or the passageway in the
modern workhouse and architecture, H-1500 high speed door is the best solution to meet the demand.

  • Smooth operating during the whole processing.
  • More durable used by more  thicker curtain weaven fiber .
  • Elegent appreance.

Curtain Color

Grey, White,Red

Anti wind bar

No anti wind bar

Power supply

AC 220V-240V, Single-Three Phrase, 50HZ

Temperature

 -7 to 65 Celsius degree

Normal Working

 -5 to 65 Celsius degree

Standard Motor Position

 Left

Installation Base

 Concrete,Panel, Brick,Steel Structure.

Installation Space

≥600mm above the door
≥600mm for motor side
≥200mm for non-motor side
≥800mm in front of the door

Using Area

For Production Line









Control Unit

Control system

  • S150 FU Micro-processor
  • English Man-Machine Interface
  • Self Trouble-Shooting Recognizing system
  • Bigger LED Screen

Control Box Size:320 X 400 X 210 mm



Driving System

Feature:Absolutely Encoder

Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert







Why choose us?





  • CE Certification: patent number--2012204951286;201220495059
  •                                                      ISO  NO: 00913Q12336ROS
  • Customized products for clients
  • Designed for the long term, high frequent operating with reasonable price
  • High quality and high performance.
  • Pofessional researching and developing innovation on products.
