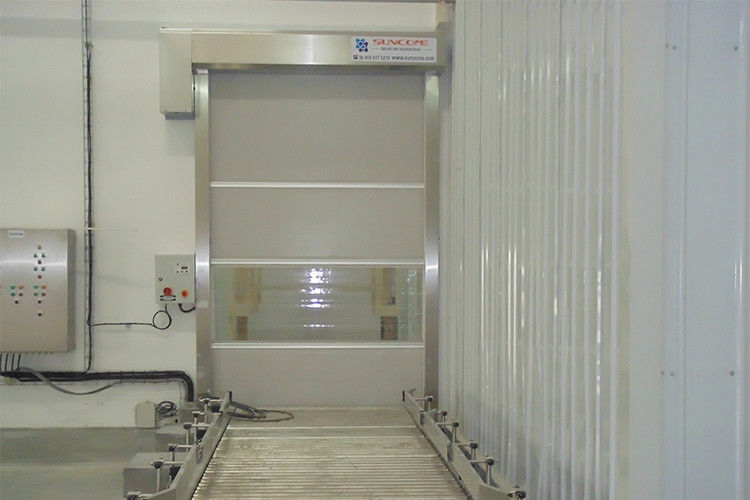

Galvanized Steel High Speed Roll Up Door Energy Saving Elegant Appearance

Galvanized Steel High Speed Roll Up Door Energy Saving Elegant Appearance

    • Galvanized Steel High Speed Roll Up Door Energy Saving Elegant Appearance
    • Galvanized Steel High Speed Roll Up Door Energy Saving Elegant Appearance
  • Galvanized Steel High Speed Roll Up Door Energy Saving Elegant Appearance

    Product Details:

    Place of Origin: China
    Brand Name: SUNCOME
    Certification: CE/ISO9001:2008
    Model Number: H2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: Standard Plywood Package
    Delivery Time: 25 working days after received your payment
    Payment Terms: T/T
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Product Name: High Speed Roll Up Door Application: Big Wind Area
    Thickness Of Curtain: 1.2mm PVC Ambient Temperature: ≥0 ℃
    Opening Speed: 1.2m/s Closing Speed: 0.8m/s
    Standard Frame: Galvanized Steel Model: Outside Speed Door

    High Efficiency Energy Savings Galvanized Steel High Speed Roll Up Door



    Activation System

    Open and Close the door:

    • Radar
    • Induction Loop
    • Remote
    • Card Sensor
    • Pull Cord
    • Push Button
    • Touching Panel for Cleaning Room
    • Central-Computer Controlling

    Safety System

    Safe Equipment:

    • Beep
    • Anti-wind Bar
    • Traffic Light
    • Wireless safety Edge
    • Built-in Photo Cell
    • Emergency Handle
    • Shoulder Protection
    •
    Curtain Color Grey, White,Red
    Anti wind bar No anti wind bar
    Power supply AC 220V-240V, Single-Three Phrase, 50HZ
    Temperature -7 to 65 Celsius degree
    Normal Working -5 to 65 Celsius degree
    Standard Motor Position Left
    Installation Base Concrete,Panel, Brick,Steel Structure.
    Installation Space ≥600mm above the door
    ≥600mm for motor side
    ≥200mm for non-motor side
    ≥800mm in front of the door
    Using Area

    For Production Line





    Why Choose us?

    • CE Certification: patent number--2012204951286;201220495059
    •                                                      ISO NO: 00913Q12336ROS
    • Customized products for clients
    • Designed for the long term, high frequent operating with reasonable price
    • High quality and high performance.
    • Pofessional researching and developing innovation on products

    Technical Parameter for speed door

    Max Size:4000mm(W)*4000mm(H)

    Opening Speed:1.2m/s

    Closing Speed:0.6m/s

    Wind load Max:12m/s



    Mechanical Unit

    Frame:Galvanized steel

    Inner Frame: Galvanized steel

    Thickness of shaft cover:

    Motor cover:Yes

    Frame Size:120mm*120mm



    Control Unit

    Control system

    • S150 FU Micro-processor
    • English Man-Machine Interface
    • Self Trouble-Shooting Recognizing system
    • Bigger LED Screen

    Control Box Size:320 X 400 X 210 mm



    Driving System

    Feature:Absolutely Encoder

    Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert







    Galvanized Steel High Speed Roll Up Door Energy Saving Elegant AppearanceGalvanized Steel High Speed Roll Up Door Energy Saving Elegant Appearance
