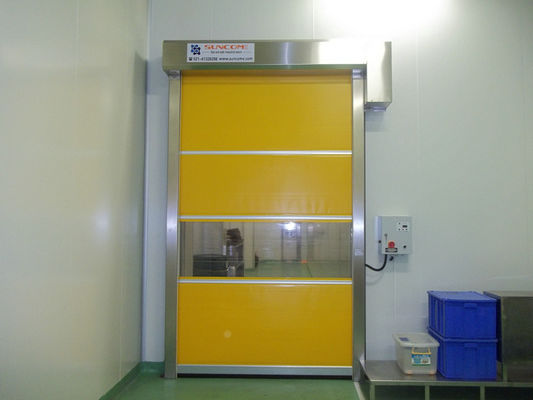

Automatic Industrial High Speed Shutter Door , 1.2mm PVC Curtain Thickness

Automatic Industrial High Speed Shutter Door , 1.2mm PVC Curtain Thickness

    • Automatic Industrial High Speed Shutter Door , 1.2mm PVC Curtain Thickness
    • Automatic Industrial High Speed Shutter Door , 1.2mm PVC Curtain Thickness
  • Automatic Industrial High Speed Shutter Door , 1.2mm PVC Curtain Thickness

    Product Details:

    Place of Origin: China
    Brand Name: SUNCOME
    Certification: CE/ISO9001:2008
    Model Number: H3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: Standard Plywood Package
    Delivery Time: 25 working days after received your payment
    Payment Terms: T/T
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Product Name: Industrial High Speed Door Application: High Frequent Using Application
    Thickness Of Curtain: 1.2mm PVC Ambient Temperature: ≥0 ℃
    Opening Speed: 1.2m/s Closing Speed: 0.8m/s
    Standard Frame: 304 Stainless Steel Model: Inside Speed Door

    Automatic Industrial High Speed Shutter Door , 1.2mm PVC Curtain Thickness





    Specifications:



    Technical Parameter for speed door

    Max Size

    4000mm(W)*4000mm(H)

    Opening Speed

    1.2m/s

    Closing Speed

    0.6m/s

    Wind load Max

    12m/s

    Mechanical Unit

    Frame

    304 Stainless Steel

    Inner Frame

    Anti-wear Nylon Molded Inner frame

    Thickness of frame

    2.0mm Stainless Steel

    Thickness of shaft cover

    1.5mm 304 Stainless Steel

    Motor cover

    Yes

    Frame Size

    120mm*120mm

    Control Unit

    Control system

    S150 FU Micro-processor

    English Man-Machine Interface

    Self Trouble-Shooting Recognizing system

    Bigger LED Screen



    Control Box Size

    320 X 400 X 210 mm

    Driving System

    Feature

    Absolutely Encoder

    Driving Unit Brand

    ABB Motor

    Driving Unit Brand

    Yaskawa Frequent Convert

    Activation System

    Open and Close the door

    Radar

    Induction Loop

    Remote

    Card Sensor

    Pull Cord

    Push Button

    Touching Panel for Cleaning Room

    Central-Computer Controlling

    Safety System

    Safe Equipment

    Beep

    Anti-wind Bar

    Traffic Light

    Wireless safety Edge

    Built-in Photo Cell





    Emergency Handle





    Shoulder Protection

    Curtain Color

    Blue, Orange,Yellow, Red, Grey.

    Viewing Window

    Full transparent 1.5mm PVC window.

    Power supply

    AC 220V - 240V,Single- 3 Phrase, 50HZ

    Temperature

     -7 to 65 Celsius degree

    Normal Working

     -5 to 65 Celsius degree

    Standard Motor Position

     Left

    Installation Base

     Concrete,Panel, Brick,Steel Structure.

    Installation Space

    ≥600mm above the door

    ≥600mm for motor side

    ≥200mm for non-motor side

    ≥800mm in front of the door





    Description:



    With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.



    Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.



    We boast professional sales engineers, installation teams and after-sales service personnels who can provide our clients with customized service .



    Automatic and High Performance Speed Door  is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.





    1) Special design for factory’s outside application
    2) high frequent using of the outside logistics demands.
    3) High speed auto opening and closing for the logistics transferring.
    4) Quick reaction by the controlling of the activation way.
    5) Auto time-delayed function adjustment based on good transferring time.
    6) Sustained innovation on the product.
    7) Energy saving for the temperature difference.
    8) High efficient for the door operation.
    9) Adopting “Absolutely Encoder” to avoid the top and end position readjusting after the power off.
    10) Unique Man-Machine Interface to ensure the smooth operation. Error shooting function is also a tool for engineer to find the key of problem shortly.
    11) Door controlling system is easy to meet the different demands.
    12) Standard activation terminals are equipped with the control system to avoid trouble when the door’s opening and closing way changed.
    13) Unique design and innovation on “Main Board”.
    14) One-Key push button to Up and Down the door manually.
    15) RED EMERGENCY STOP push button for “STOP” function in Emergent status.
    16) High Frequent Motor with auto-brake function.
    17) Anti-rusty 304 stainless steel suits for the cleaning environment application.
    18) Unique inner Nylon molded frame and double lines brushes will avoid dust go through the door.
    19) More wider dimension shaft to ensure the door to roll up stably.
    20) With stronger anti-load wind bar for wind load.
    21) Wireless safety edge for shoulder protection during the door operation.
    23) Viewing windows or transparent stripe will provide the convenience during the door operation.
    24) Build-in Photo cell provide the unnecessary opening and closing caused by the wind pressure.
    25) IP 65 Control box.
    26) Locker equipped with main Switch for unnecessary opening of the control box.
    27) Emergency handle to meet the power off status.
    28) Free maintenance on the door.
