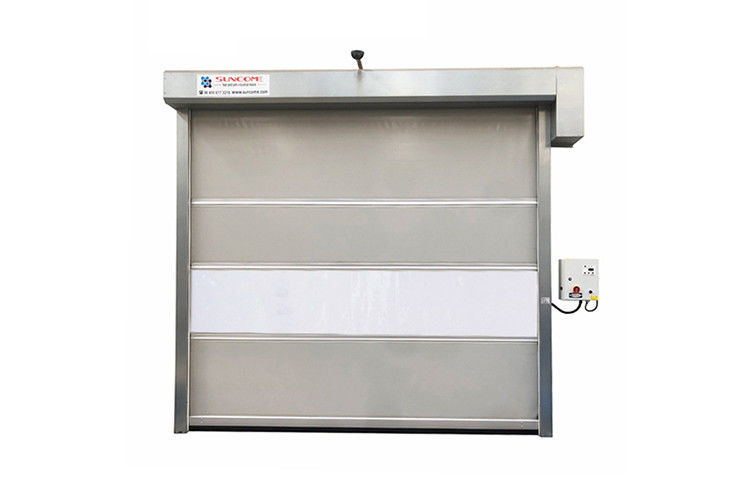

Cleaning Room High Speed PVC Curtain Industrial Roll Up Door Touching Panel

Product Details

Place of Origin: China

Brand Name: SUNCOME

Certification: CE/ISO9001:2008

Model Number: H2008

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Standard Plywood Package

Delivery Time: 25 working days after received your payment

Payment Terms: T/T

Supply Ability: 100 units per month

Get Best Price
Highlight:

industrial workshop doors

,

industrial roll up door

Product Name:
High Speed PVC Curtain Rolling Door
Application:
Cleaning Room
Thickness Of Curtain:
1.2mm PVC
Ambient Temperature:
≥0 ℃
Opening Speed:
1.2m/s
Closing Speed:
0.8m/s
Standard Frame:
Galvanized Steel
Model:
Outside Speed Door
Product Name:
High Speed PVC Curtain Rolling Door
Application:
Cleaning Room
Thickness Of Curtain:
1.2mm PVC
Ambient Temperature:
≥0 ℃
Opening Speed:
1.2m/s
Closing Speed:
0.8m/s
Standard Frame:
Galvanized Steel
Model:
Outside Speed Door
Cleaning Room High Speed PVC Curtain Industrial Roll Up Door Touching Panel

Industrial Cleaning Room High Speed PVC Curtain Rolling Door Touching Panel





Why Choose us?

  • CE Certification: patent number--2012204951286;201220495059
  •                                                      ISO NO: 00913Q12336ROS
  • Customized products for clients
  • Designed for the long term, high frequent operating with reasonable price
  • High quality and high performance.
  • Pofessional researching and developing innovation on products

Main feature:



H2008 durable high speed door is very suitable for the demands of general frequent using in exterior wind load area.

Further, with the optional stronger wind-bar, it can meet the demands of exterior application.



Curtain Color

Blue, Orange,Yellow, Red, Grey.

Viewing Window

Full transparent 1.5mm PVC window.

Power supply

AC 220V - 240V,Single- 3 Phrase, 50HZ

Temperature

 -7 to 65 Celsius degree

Normal Working

 -5 to 65 Celsius degree

Standard Motor Position

 Left

Installation Base

 Concrete,Panel, Brick,Steel Structure.

Installation Space

≥600mm above the door
≥600mm for motor side
≥200mm for non-motor side
≥800mm in front of the door


Specifications:



Technical Parameter for speed door

Max Size:4000mm(W)*4000mm(H)

Opening Speed:1.2m/s

Closing Speed:0.6m/s

Wind load Max:12m/s



Mechanical Unit

Frame:304 Stainless Steel

Inner Frame:

Thickness of frame:2.0mm Stainless Steel

Thickness of shaft cover:1.5mm 304 Stainless Steel

Motor cover:Yes

Frame Size:120mm*120mm



Control Unit

Control system

  • S150 FU Micro-processor
  • English Man-Machine Interface
  • Self Trouble-Shooting Recognizing system
  • Bigger LED Screen

Control Box Size:320 X 400 X 210 mm





About Suncome
With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.

Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.

We boast professional sales engineers, installation teams and after-sales service personnels who can provide our clients with customized service .




Automatic and High Performance Speed Door  is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.
