|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Standard Plywood Package|
|Delivery Time:||25 working days after received your payment|
|Supply Ability:||100 units per month|
|Product Name:||High Speed Roller Door||Application:||Using For Outside And Safe Application|
|Thickness Of Curtain:||100mm Width Insulated Aluminum Or Steel Panel||Ambient Temperature:||≥0 ℃|
|Opening Speed:||0.5m/s||Closing Speed:||0.3m/s|
|Standard Frame:||304 Stainless Steel||Model:||Outside Door|
workshop security doors,
roll up metal doors

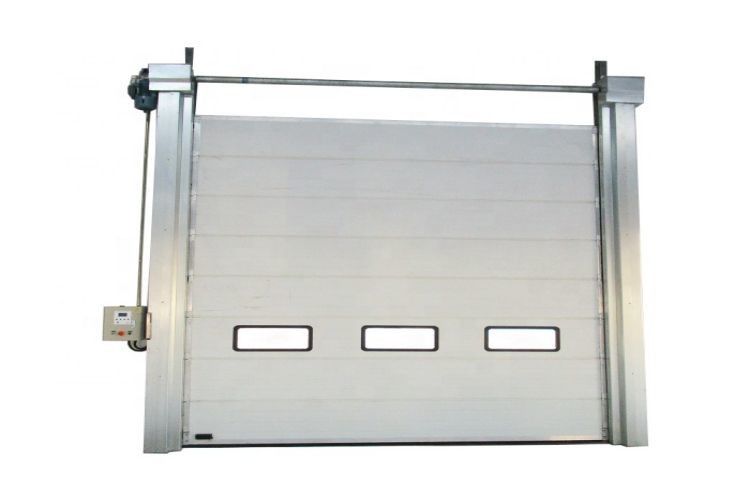

Industrial AC 380V Intelligence Aluminum Security Door Outside Inside Security Door
AC 380V,3 Phrase, 50HZ
-7 to 65 Celsius degree
-5 to 65 Celsius degree
Standard Motor Position
Concrete,Panel, Brick,Steel Structure.
≥600mm above the door
For Production Line
Technical Parameter for speed door
Wind load Max:30m/s
Frame:304 Stainless Steel
Inner Frame:Anti-wear Nylon Molded Inner frame
Thickness of frame:2.0mm Stainless Steel/Galvanized Steel
Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel
Control Box Size:320 X 400 X 210 mm
Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert
Open and Close the door:
1) Special design for factory’s outside application
2) high frequent using of the outside logistics demands.
3) High speed auto opening and closing for the logistics transferring.
4) Quick reaction by the controlling of the activation way.
5) Auto time-delayed function adjustment based on good transferring time.
6) Sustained innovation on the product.
7) Energy saving for the temperature difference.
8) High efficient for the door operation.
9) Adopting “Absolutely Encoder” to avoid the top and end position readjusting after the power off.
10) Unique Man-Machine Interface to ensure the smooth operation. Error shooting function is also a tool for engineer to find the key of problem shortly.
11) Door controlling system is easy to meet the different demands.
12) Standard activation terminals are equipped with the control system to avoid trouble when the door’s opening and closing way changed.
13) Unique design and innovation on “Main Board”.
14) One-Key push button to Up and Down the door manually.
15) RED EMERGENCY STOP push button for “STOP” function in Emergent status.
With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.
Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.
We boast professional sales engineers, installation teams and after-sales service personnels who can provide our clients with customized service .
Automatic and High Performance Speed Door is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.
