Home > products > Industrial Security Door > Grey White 304 Stainless Steel Frame Industrial Security Door Outside

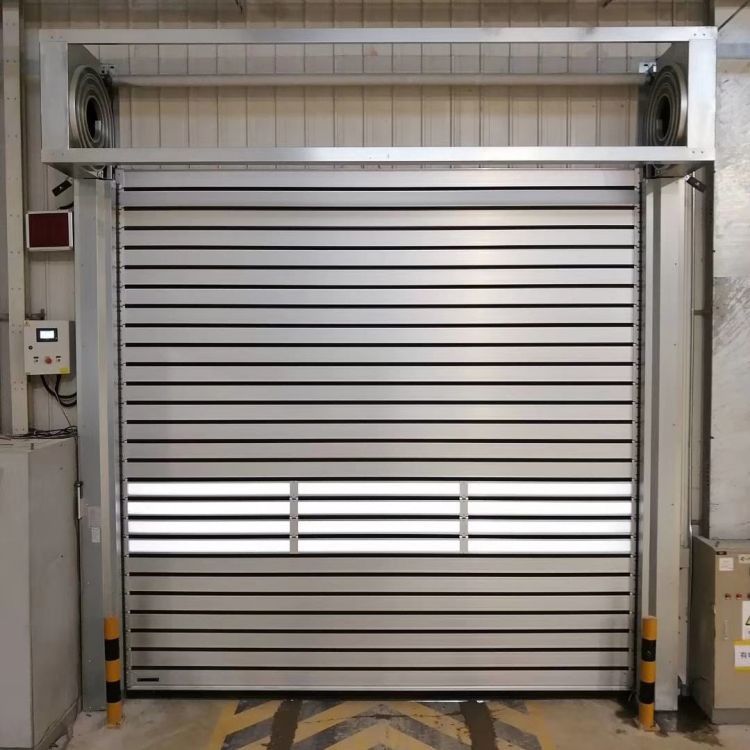

Grey White 304 Stainless Steel Frame Industrial Security Door Outside

Product Details

Place of Origin: China

Brand Name: SUNCOME

Certification: CE/ISO9001:2008

Model Number: H6000

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Standard Plywood Package

Delivery Time: 25 working days after received your payment

Payment Terms: T/T

Supply Ability: 100 units per month

Get Best Price
Highlight:

workshop security doors

,

roll up metal doors

Product Name:
High Speed Security Door
Application:
Using For Outside And Safe Application
Thickness Of Curtain:
100mm Width Insulated Aluminum Or Steel Panel
Ambient Temperature:
≥0 ℃
Opening Speed:
0.5m/s
Closing Speed:
0.3m/s
Standard Frame:
304 Stainless Steel
Model:
Outside Door
Product Name:
High Speed Security Door
Application:
Using For Outside And Safe Application
Thickness Of Curtain:
100mm Width Insulated Aluminum Or Steel Panel
Ambient Temperature:
≥0 ℃
Opening Speed:
0.5m/s
Closing Speed:
0.3m/s
Standard Frame:
304 Stainless Steel
Model:
Outside Door
Grey White 304 Stainless Steel Frame Industrial Security Door Outside

Grey White 304 Stainless Steel Frame Industrial Security Door Outside


Specifications:



Curtain Color

Grey, White

Power supply

AC 380V,3 Phrase, 50HZ

Temperature

 -7 to 65 Celsius degree

Normal Working

 -5 to 65 Celsius degree

Standard Motor Position

 Left

Installation Base

 Concrete,Panel, Brick,Steel Structure.

Installation Space

≥600mm above the door
≥600mm for motor side
≥200mm for non-motor side
≥800mm in front of the door

Using Area

For Production Line



Technical Parameter for speed door

Max Size:5000mm(W)*5000mm(H)

Opening Speed:0.5m/s

Closing Speed:0.3m/s

Wind load Max:30m/s



Mechanical Unit

Frame:304 Stainless Steel

Inner Frame:Anti-wear Nylon Molded Inner frame

Thickness of frame:2.0mm Stainless Steel/Galvanized Steel

Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel

Motor cover:Yes

Frame Size:125mm*150mm



Control Unit

Control system

  • S150/120 FU Micro-processor
  • English Man-Machine Interface
  • Self Trouble-Shooting Recognizing system
  • Bigger LED Screen

Control Box Size:320 X 400 X 210 mm



Driving System

Feature:Absolutely Encoder

Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert



Activation System

Open and Close the door:

  • Radar
  • Induction Loop
  • Remote
  • Card Sensor
  • Pull Cord
  • Push Button
  • Touching Panel for Cleaning Room
  • Central-Computer Controlling

Safety System

Safe Equipment:

  • Beep
  • Anti-wind Bar
  • Traffic Light
  • Wireless safety Edge
  • Built-in Photo Cell
  • Emergency Handle
  • Shoulder Protection

1) Special design for factory’s outside application
2) high frequent using of the outside logistics demands.
3) High speed auto opening and closing for the logistics transferring.
4) Quick reaction by the controlling of the activation way.
5) Auto time-delayed function adjustment based on good transferring time.
6) Sustained innovation on the product.
7) Energy saving for the temperature difference.
8) High efficient for the door operation.
9) Adopting “Absolutely Encoder” to avoid the top and end position readjusting after the power off.
10) Unique Man-Machine Interface to ensure the smooth operation. Error shooting function is also a tool for engineer to find the key of problem shortly.
11) Door controlling system is easy to meet the different demands.
12) Standard activation terminals are equipped with the control system to avoid trouble when the door’s opening and closing way changed.
13) Unique design and innovation on “Main Board”.
14) One-Key push button to Up and Down the door manually.
15) RED EMERGENCY STOP push button for “STOP” function in Emergent status.



About Suncome
With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.

Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.

We boast professional sales engineers, installation teams and after-sales service personnels who can provide our clients with customized service .

Automatic and High Performance Speed Door  is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.

Why Choose us?

  • CE Certification: patent number--2012204951286;201220495059
  •                                                      ISO NO: 00913Q12336ROS
  • Customized products for clients
  • Designed for the long term, high frequent operating with reasonable price
  • High quality and high performance.
  • Pofessional researching and developing innovation on products.
