|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Standard Plywood Package|
|Delivery Time:||25 working days after received your payment|
|Supply Ability:||100 units per month|
|Product Name:||High Speed Plastic Door||Application:||Dust-free Area|
|Thickness Of Curtain:||1.2mm PVC||Ambient Temperature:||≥0 ℃|
|Opening Speed:||1.2m/s||Closing Speed:||0.8m/s|
|Standard Frame:||304 Stainless Steel||Model:||Inside Speed Door|
interior roller shutter doors,
security rolling shutters

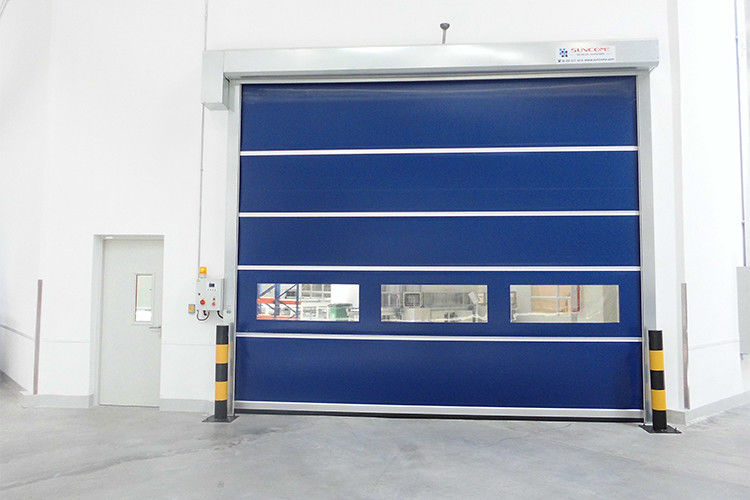

Self Trouble-Shooting Recognizing System High Speed PVC Curtain Doors
Control Box Size:320 X 400 X 210 mm
Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert
Technical Parameter for speed door
Wind load Max
304 Stainless Steel
Anti-wear Nylon Molded Inner frame
Thickness of frame
2.0mm Stainless Steel
Thickness of shaft cover
1.5mm 304 Stainless Steel
S150 FU Micro-processor
English Man-Machine Interface
Self Trouble-Shooting Recognizing system
Bigger LED Screen
Control Box Size
320 X 400 X 210 mm
Driving Unit Brand
Driving Unit Brand
Yaskawa Frequent Convert
Open and Close the door
Touching Panel for Cleaning Room
Wireless safety Edge
Built-in Photo Cell
Blue, Orange,Yellow, Red, Grey, White,Green.
Full transparent 1.5mm PVC window.
AC 220V - 240V,Single- 3 Phrase, 50HZ
60mm or stronger anti-wind pipe
-7 to 65 Celsius degree
-5 to 65 Celsius degree
Standard Motor Position
Concrete,Panel, Brick,Steel Structure.
≥600mm above the door
For Production Line
With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.
Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.
We boast professional sales engineers, installation teams and after-sales service personnels who can provide our clients with customized service .
Automatic and High Performance Speed Door is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.
1) Special design for factory’s outside application
2) high frequent using of the outside logistics demands.
3) High speed auto opening and closing for the logistics transferring.
4) Quick reaction by the controlling of the activation way.
5) Auto time-delayed function adjustment based on good transferring time.
6) Sustained innovation on the product.
7) Energy saving for the temperature difference.
8) High efficient for the door operation.
9) Adopting “Absolutely Encoder” to avoid the top and end position readjusting after the power off.
10) Unique Man-Machine Interface to ensure the smooth operation. Error shooting function is also a tool for engineer to find the key of problem shortly.
11) Door controlling system is easy to meet the different demands.
12) Standard activation terminals are equipped with the control system to avoid trouble when the door’s opening and closing way changed.
13) Unique design and innovation on “Main Board”.
14) One-Key push button to Up and Down the door manually.
15) RED EMERGENCY STOP push button for “STOP” function in Emergent status.
16) High Frequent Motor with auto-brake function.
17) Anti-rusty 304 stainless steel suits for the cleaning environment application.
18) Unique inner Nylon molded frame and double lines brushes will avoid dust go through the door.
19) More wider dimension shaft to ensure the door to roll up stably.
20) With stronger anti-load wind bar for wind load.
21) Wireless safety edge for shoulder protection during the door operation.
23) Viewing windows or transparent stripe will provide the convenience during the door operation.
24) Build-in Photo cell provide the unnecessary opening and closing caused by the wind pressure.
25) IP 65 Control box.
26) Locker equipped with main Switch for unnecessary opening of the control box.
27) Emergency handle to meet the power off status.
28) Free maintenance on the door.
