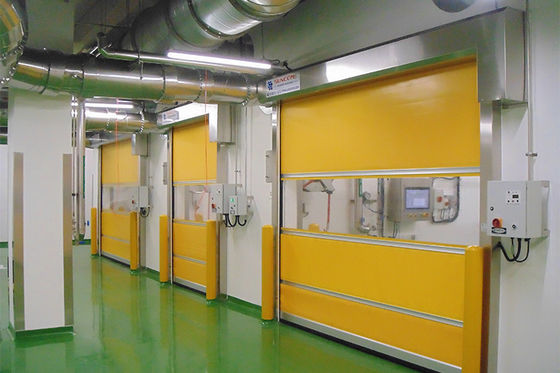

Transparent PVC Window High Speed Galvanized Steel Shutter Door
Main feature:
H2008 durable high speed door is very suitable for the demands of general frequent using in exterior wind load area.
Further, with the optional stronger wind-bar, it can meet the demands of exterior application.
|
Curtain Color
|
Blue, Orange,Yellow, Red, Grey.
|
|
Viewing Window
|
Full transparent 1.5mm PVC window.
|
|
Power supply
|
AC 220V - 240V,Single- 3 Phrase, 50HZ
|
|
Temperature
|
-7 to 65 Celsius degree
|
|
Normal Working
|
-5 to 65 Celsius degree
|
|
Standard Motor Position
|
Left
|
|
Installation Base
|
Concrete,Panel, Brick,Steel Structure.
|
|
Installation Space
|
≥600mm above the door
≥600mm for motor side
≥200mm for non-motor side
≥800mm in front of the door
|
Specifications:
Technical Parameter for speed door
Max Size:4000mm(W)*4000mm(H)
Opening Speed:1.2m/s
Closing Speed:0.6m/s
Wind load Max:12m/s
Mechanical Unit
Frame:304 Stainless Steel
Inner Frame:Anti-wear Nylon Molded Inner frame
Thickness of frame:2.0mm Stainless Steel
Thickness of shaft cover:1.5mm 304 Stainless Steel
Motor cover:Yes
Frame Size:120mm*120mm
Control Unit
Control system
- S150 FU Micro-processor
- English Man-Machine Interface
- Self Trouble-Shooting Recognizing system
- Bigger LED Screen
Control Box Size:320 X 400 X 210 mm
Driving System
Feature:Absolutely Encoder
Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert
Activation System
Open and Close the door:
- Radar
- Induction Loop
- Remote
- Card Sensor
- Pull Cord
- Push Button
- Touching Panel for Cleaning Room
- Central-Computer Controlling
Safety System
Safe Equipment:
- Beep
- Anti-wind Bar
- Traffic Light
- Wireless safety Edge
- Built-in Photo Cell
- Emergency Handle
- Shoulder Protection
About Suncome
With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.
Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.
We boast professional sales engineers, installation teams and after-sales service personnels who can provide our clients with customized service .
Automatic and High Performance Speed Door is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.
