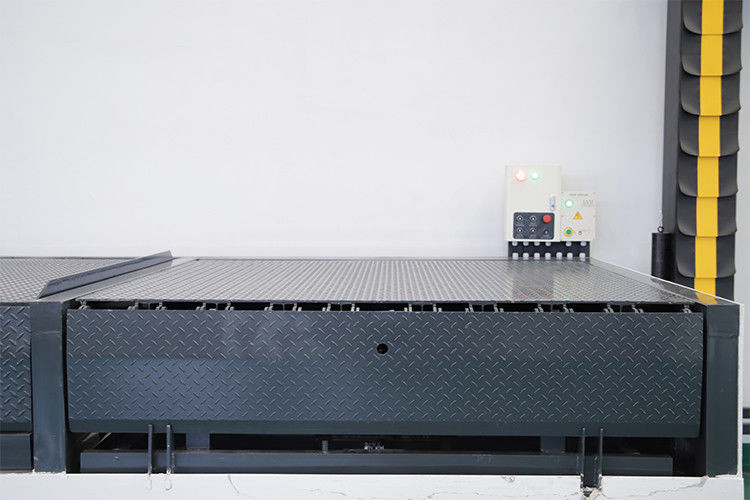

Warehouse Logistic Equipment Airbag Dock Leveler 220 Volt 6*8 Size

Product Details

Place of Origin: China

Brand Name: SUNCOME

Certification: CE/ISO9001:2008

Model Number: Air bag dock leveler

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: No Package

Delivery Time: 25 working days after received your payment

Payment Terms: T/T

Supply Ability: 100 units per month

Get Best Price
Highlight:

airbag lifting system

,

warehouse dock leveler

Product Name:
Air Bag Dock Leveler
Application:
Using For Outside Application
Thickness Of Steel:
20mm
Ambient Temperature:
≥-30 ℃
Working Range:
+/-300mm Above /below Dock
Capacity:
25000-40000LBS
Power Supply:
220V/1-Phase/50Hz/750W.
Control Unit:
Push Button
Product Name:
Air Bag Dock Leveler
Application:
Using For Outside Application
Thickness Of Steel:
20mm
Ambient Temperature:
≥-30 ℃
Working Range:
+/-300mm Above /below Dock
Capacity:
25000-40000LBS
Power Supply:
220V/1-Phase/50Hz/750W.
Control Unit:
Push Button
Warehouse Logistic Equipment Airbag Dock Leveler 220 Volt 6*8 Size



Warehouse Logistic Equipment Airbag Dock Leveler 220 Volt 6*8 Size





Warranty:

5 years Free warranty for the air bag lifting system

1 year wrranty period for other parts



Features:

1) Special design for factory’s outside/exterior application.

2) Frequent using/cycles during the loading and unloading.

3) Fine steel plate frame

4) Safe design&durable operation.

5) Structural safety legs supporting below-dock loading.

6) Integral maintenance structure for deck support

7) Free maintenance for the air bag.

8) High volume&low pressure air activation system.

9) Special air-powered way is a common tool for heavy lifting.

10) Environment friendly.





Specifications:



Technical Parameter

Max Size

7Ft(L)*10mm(W)

Lifting height

300mm above the dock leveler

Down height

300mm below the dock leveler

Capacity

25000-40000LBS

Control Unit

Control system

Push Button

Driving System

Air bag material

High strength anti-wear material

Driving Unit Brand

HaiPu Motor

Safety System

Safe Equipment

Free bumpers

5 years free warranty of the airbag material

No springs

Hold -down function

High volume air activation

Backing -wrenching pulling of chains

Sealing system

Dock seal, dock shelter and vehicle restraint.

Curtain Color

Grey, Green

Power supply

AC 220V-240V, Single-Three Phrase, 50HZ,750w

Temperature

 -30 to 65 Celsius degree

Normal Working

 -30 to 65 Celsius degree

Standard operation

 Push button

Installation Base

Concrete platform

Pit Size

Long: from 1600mm to 2820mm



Wide: from 1870mm to 2170mm





Description:

With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.



We boast professional sales engineers, installation teams and after-sales service personnel who can provide our clients with customized service .



Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.



Automatic and High Performance Speed Door  is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.
