Highlight:
Telescopic Lip Hydraulic Dock Leveler
, Extension Hydraulic Dock Leveler
, Hydraulic Telescopic Lip Dock Levellers
Variable Lip Size: |
800/900/1000mm |
Lip Thickness: |
3/8 Inches |
Operation Voltage: |
DC 24V |
Telescopic Lip Size: |
1000mm |
Retractable Dock Plate: |
500/800/900/1000mm |
Control System: |
Push Button |
Platform Width: |
6 Feet |
Material: |
Q235 Anti-slip Steel Material |
Advantage: |
Customs |
Lip Telescopic Size: |
500/800/900/1000mm |
Retractable Lip Size: |
800mm/1000mm |
Safety Device: |
Full Protector Two Side |
Lift Drive: |
Hydraulic , Electric Motor |
Table Size: |
Customized Size Based On Customer Denmand |
Warranty: |
15 Month After The Shipment |
Lift Mechanism: |
Hydraulic Pump+ Motor |
Power: |
1.1-2.2 KW |
Color: |
RAL Option |
Rated Loading: |
Customized Capacity |
Max Lifiing Heiight: |
2 Meter |
Feature: |
Easy Operation , Safety Convinience |
Application: |
Goods Delivery And Loading And Unloading |
Material: |
Q235 High Strength Steel |
Option: |
304 SS For Surface Dealiing Works |
Warning Strip : |
Ok To Provide For OEM |
Optional Barrier: |
Standard Equipment For Protection During The Processing |
Lip: |
Standard |

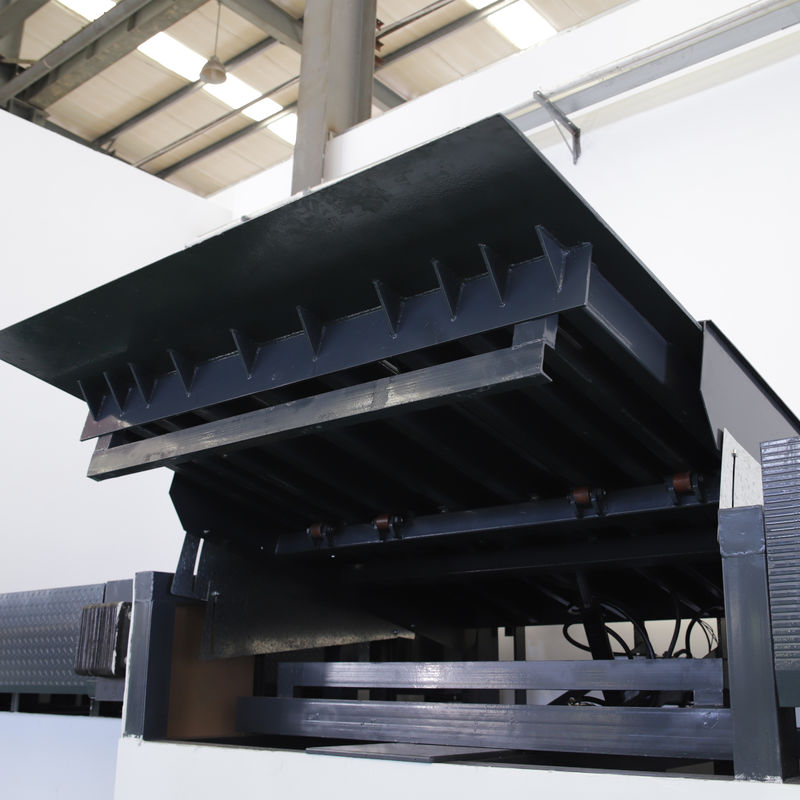

Hydraulic Telescopic Lip Extension Dock Leveler Free Maintenance
Free Maintenance Hydraulic Telescopic extension dock leveler
Product Overview
Our Telescopic Dock Leveler is designed to bridge the gap between loading docks and trucks with variable bed heights, offering enhanced safety, efficiency, and flexibility. The extendable lip allows precise positioning inside the truck bed, making it ideal for sealed dock operations and cold chain logistics.
Key Features
· Extendable Lip Design: Telescopic lip (standard: 500mm or 1000mm) allows precise extension into the truck for a full and safe contact surface.
· Heavy-Duty Steel Platform: High-strength, anti-slip checker plate ensures durability under frequent use and heavy loads.
· Hydraulic Control System: Equipped with a powerful and reliable hydraulic system, ensuring smooth and safe operation.
· Low Maintenance: Simple construction with robust components reduces maintenance needs and operating costs.
· Flexible Installation: Available in multiple pit mounting options, including suspended frame, box type, and custom dimensions.
· Safety Features: Includes side toe guards, maintenance support bar, anti-slip surface, and emergency stop function.
Technical Specifications
|
Item
|
Specification
|
|
Platform Length
|
2000mm – 4500mm
|
|
Platform Width
|
2000mm – 2200mm
|
|
Lip Extension
|
500mm / 1000mm (customizable)
|
|
Load Capacity
|
6000kg / 9000kg / 12000kg
|
|
Platform Material
|
6/8mm thick anti-slip steel plate
|
|
Operation Mode
|
Electro-hydraulic
|
|
Power Supply
|
380V / 50-60 Hz (customizable)
|
|
Working Temperature
|
-30°C to +50°C
|
|
Control Unit
|
Push-button control box with IP54 rating
|
|
Optional Accessories
|
Bumper blocks, sealing frame
|
Applications
· Food & Beverage Warehouses
· Pharmaceutical & Cleanroom Logistics
· Retail Distribution Centers
· Cold Chain and Temperature-Controlled Docks
· High-frequency loading/unloading environments
Why Choose Our Telescopic Dock Leveler?
· Over 10 years of industry experience
· Strict quality control with ISO/CE certification
· Custom engineering for special requirements
· Local installation support and after-sales service available
