Highlight:
                                                                                                                                                                                                                                                                                                                Safety Hydraulic Edge Of Dock Leveler, Electric Hydraulic Edge Of Dock Leveler, Cargo Electric Edge Of Dock Leveler


Product Name:	EDGE OF Dock Leveler	Application:	Using For Outside Application
Thickness Of Plate:	8 Mm And The Lip Is 16 Mm	Ambient Temperature:	≥-30 ℃
Working Range:	+/-300mm Above /below Dock	Capacity:	6 TON At Most
Power Supply:	380V/3-Phase/50Hz/750W.	Control Unit:	Push Button

Product Name:	EDGE OF Dock Leveler
Application:	Using For Outside Application
Thickness Of Plate:	8 Mm And The Lip Is 16 Mm
Ambient Temperature:	≥-30 ℃
Working Range:	+/-300mm Above /below Dock
Capacity:	6 TON At Most
Power Supply:	380V/3-Phase/50Hz/750W.
Control Unit:	Push Button

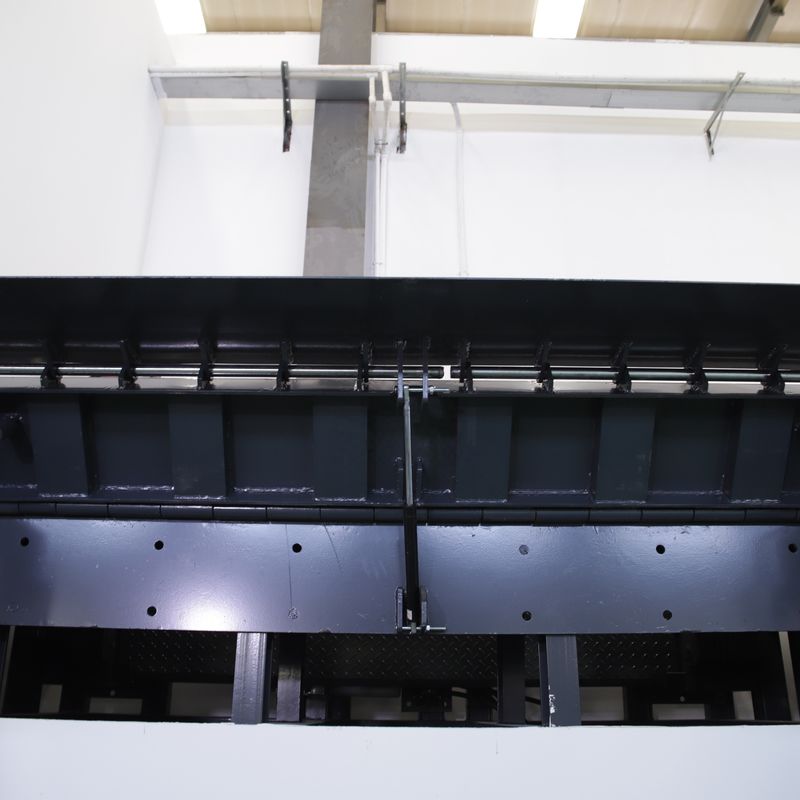

Safety Electric Hydraulic Edge Of Dock Leveler For Efficient Cargo Transfer

Safety electric edge of Hydraulic Dock Leveler for Efficient Cargo Transfer

The EDO electro-hydraulic dock leveler is engineered for modern logistics and warehouse operations.

It automatically bridges the gap between trucks and loading docks, enabling safe and efficient cargo handling.

we use Non-slip steel as the main plate to aviod the damage of the loading and unloading whick keeps the safety status during the processing.

One push button for easy operation for loading and unloading.

Specifications:

Technical Parameter	Max Size	2000MM (L)500MM(W)500 MM(H)
	Lifting height	300mm above the dock leveler
	Down height	300mm below the dock leveler
	Capacity	6Ton at most
Control Unit	Control system	Push Button
Driving System	Hydraulic system	High performance hydraulic system
Driving System	Driving Unit Brand	HaiPu Motor
Safety System	Safe Equipment	Free bumpers
		Smart and safe design
		Hold -down function
		High volume hydraulic driving
		Backing -wrenching pulling of chains
Sealing system	Dock seal, dock shelter and vehicle restraint.
Curtain Color	Grey, Green and RAL color for reference
Warranty	1 year Free warranty for the hydraulic lifting system

More Details:

Power supply: AC 380V, Three Phrase, 50HZ, 750w
Temperature: -30 to 65 Celsius degree
Standard operation: Push button
Using Area: Loading and unloading area
Environmental protection: Yes
Low maintenance: Yes

Description:

Hydraulic Pump station: 380V/3 phase/ 60 HZ/ 1.1KW
Hydraulic driving system will lead to the operation of the main deck and lip.
Hydraulic Pump&Pipe&Tank are collected in one part under the deck.
Hydraulic Velocity fuse(≤75 mm) make the leveler&heavy loading stopping automatically.
Lip of the dock leveler will adjusted the height of the loading&unloading
Safety hydraulic locking Valve device&Interlocking controlling.
One-key Control Panel for easy operation/Working Range:+300MM /- 300MM
Hydraulic Oil Tube adopts double wire mesh construction(max load 48MPA)
Hydraulic Oil is perfect to low temperature & High radiation areas operation
Equipped with Overload protection device for Motor
