Industrial Dock Leveler 380v 3 Phase Stationary Dock Ramp

Industrial Dock Leveler 380v 3 Phase Stationary Dock Ramp

Mechanism operations including dock plate and extension lip are fully hydraulic-electric controlled with a reliable hydraulic speed limitation guarantee valves ensure the reliability.The main dock plate is made of 8 mm high strength embossed non-slip steel material.

Specifications:

1. System: The low maintenance designing for the long run
2. Safety Structural: safety legs provide supporting and below-dock loading. 10 Amp motor, hydraulic pump,
3. Motor-runs off : 380V 3-phase electrical outlet
4. Structure ; 50,000 PSI high-tensile steel deck and lip assembly depending on selected dock levler capacity
5. Integral maintenance struck for deck spporting
6. optional: 18'' or 20''for longer lip purchase
7. lip extension extends lip at full height
8. clean-frame design for easy clean-up,maintenance and inspction
9. Operation: push-botton desinging for operating
10. Working range: -250MM to + 300 MM; -300MM to +450 MM
11. Capacity 25000LBS  to 35000LBS
12. Size: 6''x8'';7''x8'',6.5''x8'';6.5''x8''(Ft.)
13. Color: negotiation

Our specialty

• More safer bottom closed tubular hinge structure to enlarge the heavy duty loading&unloading and keep it without bending or upward raise.
• Easy-to-clean bottom semi-open structure, professional design ensures consistency and low maintenance for long-term operational use.
• Penetrating safety support bar, in order to safely support the adjustment plate during equipment maintenance processing.
• Hydraulic Pump station: 380V/3 phase/ 60 HZ/ 1.1KW

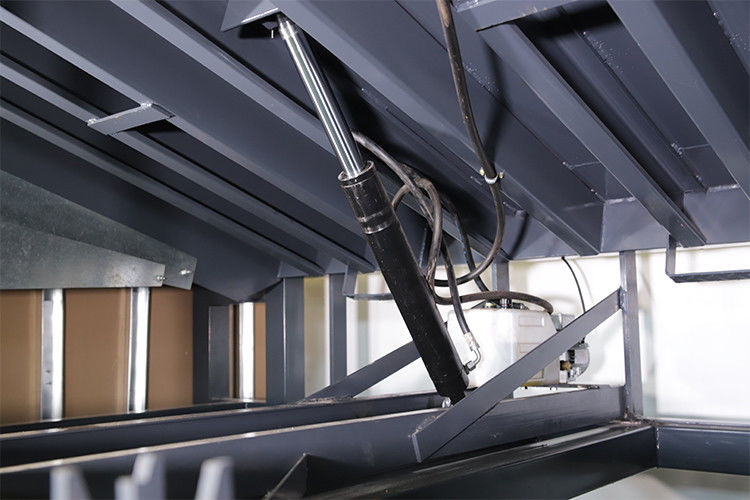

• Hydraulic driving system will lead to the operation of the main deck and lip.
• Hydraulic Pump&Pipe&Tank are collected in one part under the deck.
• Hydraulic Velocity fuse(≤75 mm) make the leveler&heavy loading stopping automatically.
• Lip of the dock leveler will adjusted the height of the loading&unloading.
• Safety hydraulic locking Valve device&Interlocking controlling.
• One-key Control Panel for easy operation/Working Range:+300MM /- 300MM
• Hydraulic Oil Tube adopts double wire mesh construction(max load 48MPA)
• Hydraulic Oil is perfect to low temperature & High radiation areas operation
• Equipped with Overload protection device for Motor
• Circular arc transition device to make the dock leveler uniform/ long using life and safer during the operation
• The sandblasting treatment enables the surface to obtain cleanliness and different roughness, increasing the adhesion  between it and coating.
• Grey resin plastic powder skill and powder thickness ≥0.1mm. Grey RAL7016
• Bumper with high-strength bracket, depth 450mm
• Capacity: Statistics 10 Ton / Dynamic 8 Ton
