|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Standard Plywood Package|
|Delivery Time:||25 working days after received your payment|
|Supply Ability:||100 units per month|
|Product Name:||High Speed Plastic Door||Application:||Using For Outside And Safe Application|
|Thickness Of Curtain:||1.5mm Weaved Fabric||Ambient Temperature:||≥0 ℃|
|Opening Speed:||1.5m/s||Closing Speed:||1.0m/s|
|Standard Frame:||304 Stainless Steel||Model:||Inside Door|
rolling steel doors,
industrial roller shutter

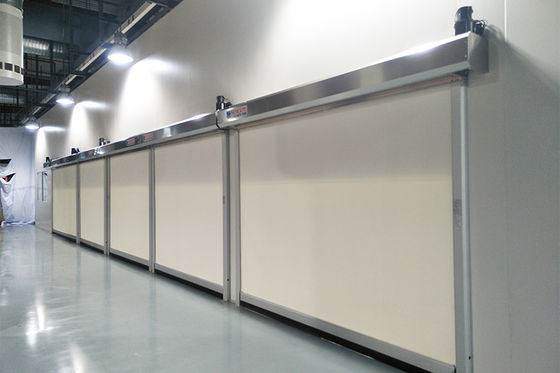

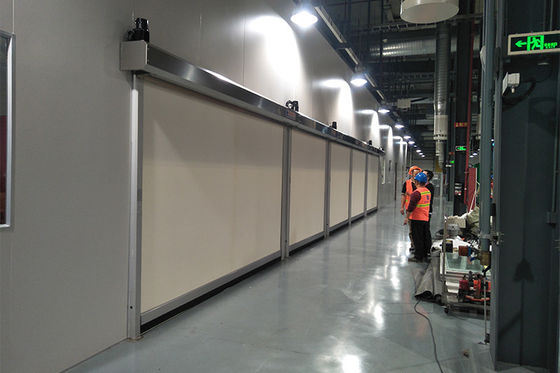

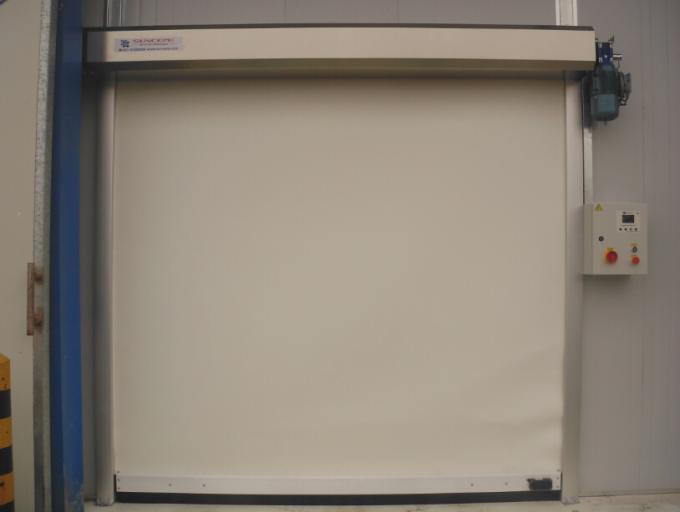

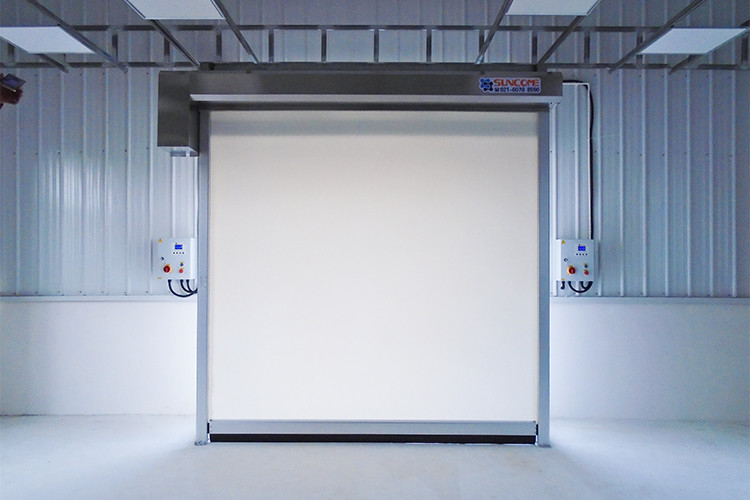

AC 220V-240V High Speed Roll Up Door , Metal Roll Up Garage Doors
In the logistics process of the protection of the production environment and safety or the passageway
in the modern workhouse and architecture, H-1000 high speed door is the best solution to meet the demand.
Anti wind bar
No anti wind bar
AC 220V-240V, Single-Three Phrase, 50HZ
-7 to 65 Celsius degree
-5 to 65 Celsius degree
Standard Motor Position
Concrete,Panel, Brick,Steel Structure.
≥600mm above the door
≥600mm for motor side
≥200mm for non-motor side
≥800mm in front of the door
For Production Line
1) Special design for factory’s outside application
2) high frequent using of the outside logistics demands.
3) High speed auto opening and closing for the logistics transferring.
4) Quick reaction by the controlling of the activation way.
5) Auto time-delayed function adjustment based on good transferring time.
6) Sustained innovation on the product.
7) Energy saving for the temperature difference.
8) High efficient for the door operation.
9) Adopting “Absolutely Encoder” to avoid the top and end position readjusting after the power off.
10) Unique Man-Machine Interface to ensure the smooth operation. Error shooting function is also a tool for engineer to find the key of problem shortly.
11) Door controlling system is easy to meet the different demands.
12) Standard activation terminals are equipped with the control system to avoid trouble when the door’s opening and closing way changed.
13) Unique design and innovation on “Main Board”.
14) One-Key push button to Up and Down the door manually.
15) RED EMERGENCY STOP push button for “STOP” function in Emergent status.
16) High Frequent Motor with auto-brake function.
17) Anti-rusty 304 stainless steel suits for the cleaning environment application.
18) Unique inner Nylon molded frame and double lines brushes will avoid dust go through the door.
19) More wider dimension shaft to ensure the door to roll up stably.
20) With stronger anti-load wind bar for wind load.
21) Wireless safety edge for shoulder protection during the door operation.
23) Viewing windows or transparent stripe will provide the convenience during the door operation.
24) Build-in Photo cell provide the unnecessary opening and closing caused by the wind pressure.
25) IP 65 Control box.
26) Locker equipped with main Switch for unnecessary opening of the control box.
27) Emergency handle to meet the power off status.
28) Free maintenance on the door.
Technical Parameter for speed door
Max Size: 3500mm(W)*3500mm(H)
Opening Speed: 1.5m/s
Closing Speed: 1.0m/s
Wind load Max: 10m/s
Frame: 304 Stainless Steel/Aluminum
Thickness of frame: 2.0mm Stainless Steel/Galvanized Steel
Thickness of shaft cover: 1.5mm 304 Stainless Steel/Galvanized Steel
Motor cover: 100mm*60mm
Control Box Size: 320 X 400 X 210 mm
Feature: Absolutely Encoder
Driving Unit Brand: ABB Motor
Driving Unit Brand: Yaskawa Frequent Convert
Open and Close the door:
