Highlight:

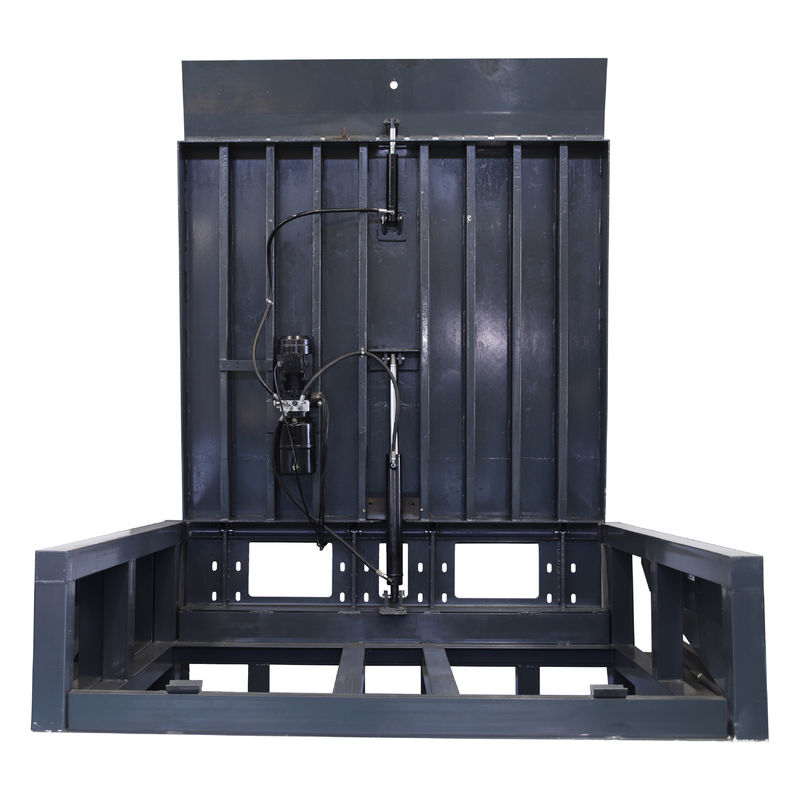

Heavy Duty Hydraulic Vertical Dock Leveler
, Electric Hydraulic Vertical Dock Leveler
Heavy Duty Hydraulic Vertical Dock Leveler Electric Truck Fixed Loading Lift Platform
Q&A:
Q: Why most customers are interested in Hydraulic dock leveler?
A: It is very wide and general using based on easy to operation and without more maintenance.
Q: Is it Hydraulic dock leveler with a long using life?
A: Yes, it is very ok for loading bay using applcation and high cycles per day in relative nature temperature.
Q: How about the dock leveler load design?
A: It is standard for 10 ton statics capacity for international container size and loading regarded as the bridge of loading and unloading for forklift.
Q: Is it correct to choose only based on the capacity? better if want to choose the heavy duty than the normal, right?
A: No need if the capacity is very normal loading which waste the money.Only to choose it based on loading and forlift weight.
Q: What do you think the dock leveler size choosing?
A: Normally, we care about the vehicle size which is better to suit most of them.
Q: If the dock leveler in a very long size and how to do?
A: We will design based on the constructure and the plate loading capacity and will deal with in a very special way to meet your demand.
Q: Is it ok use 2 main Cylinders than only one?
A: For normal using, only main cylinder is ok for normal 8 ton dynamics loading and not need to make the additional one to support.
Dock leveler show:
Feature:
| 1 |
Mechanism operations including dock plate and extension lip are fully hydraulic-electric controlled with a reliable hydraulic speed limitation guarantee valves ensure the reliability.
|
| 2 |
The main dock plate is made of 8 mm high strength embossed non-slip steel material
|
| 3 |
High strength manganese steel base made by unique "C-shaped steel"
|
| 4 |
Sturdy and stable construction, and also easy for cleaning of the pit
|
| 5 |
The plate adopts 8 Channels Unique 14# I- beam steel, which are reinforced& durable. |
| 6 |
15 mm thickness extension lip plate (L=400mm), made of the non-slip planer steel
material to ensure non-slip and non-deformation function.
|
| 7 |
Easy-to-clean bottom semi-open structure, professional design ensures consistency
and low maintenance for long-term operational use.
|
| 8 |
Easy-to-clean bottom semi-open structure, professional design ensures consistency
and low maintenance for long-term operational use.
|
| 9 |
Easy-to-clean bottom semi-open structure, professional design ensures consistency
and low maintenance for long-term operational use.
|
| 10 |
Full range full range foot guard to ensure the safety. |
| 11 |
Penetrating safety support bar, in order to safely support the adjustment plate
during equipment maintenance processing.
|
| 12 |
Front tubular hinge, 25mm diameter latch, rear U-shaped tail plate and galvanized long shaft surface treatment to ensure long-term application without rusty.
|
| 13 |
Hydraulic Pump station: 380V/1.1KW |
| 14 |
Hydraulic driving system will lead to the operation of the main deck and lip |
| 15 |
Hydraulic Pump&Pipe&Tank are collected in one part under the deck |
| 16 |
Hydraulic Velocity fuse(≤75 mm) make the leveler&heavy loading stopping
automatically
|
| 17 |
Lip of the dock leveler will adjusted the height of the loading&unloading |
| 18 |
Safety hydraulic locking Valve device&Interlocking controlling |
| 19 |
One-key Control Panel for easy operation |
| 20 |
Working Range: +300MM /- 300MM |
| 21 |
Double Cylinder with excellent anti-dust advantage. NOK (Japan Brand)Sealing Ring |
| 22 |
Hydraulic Oil Tube adopts double wire mesh construction(max load 48MPA) |
| 23 |
Hydraulic Oil is perfect to low temperature & High radiation areas operation |
| 24 |
Equipped with Overload protection device for Motor |
| 25 |
Dynamic Load: 8 Ton(standard)/Statics Load: 10 Ton(standard) |
| 26 |
Circular arc transition device to make the dock leveler uniform/ long using life
and safer during the operation
|
| 27 |
The sandblasting treatment of the dock leveler enables the surface to obtain
cleanliness and different roughness, increasing the adhesion between it and coating.
|
| 28 |
Black resin plastic powder skill and powder thickness ≥0.1mm. Black RAL9017 |
| 29 |
Power supply: 380V/3 phase/50Hz,Free Bumper: 250*250*100mm |
| 30 |
Forklift holes are available |
Details Show:
Pit Drawing and demand:
Construction Demand:
Production Progress:
Robot Joined in a large QTY Production
Robot Professional TIG Welding Skill to keep flat and stable
TIG Welding Skill to keep flat and stable after a long Using
8 mm high strength embossed non-slip steel material for Plate & Deck
Product Finished:
More Choosing:
Using Application show:
Delivery and shipment:
Other Questions you may care about:
Q: If we worried about the forklift and driver safety, how to do?
A: It is ok to equip with the baffle to keep the forklift driver safety and better with the vehicle resistant together.
Q: How to choose Cold -chain Supply loading area dock leveler?
A: we have the special Vertical dock leveler and ok to meet the special demand.
Q: Is it ok to make the additional foam under the deck/plate?
A: Yes, we can make it with a good insulation.
Q: Is it ok the make the dock leveler in Galvanised Steel material?
A: Yes, we can make it based on the material demand.
Q: Is it ok to equip with the rubber seal or brush for dock leveler?
A: Yes, it is ok and some customers choose in this way.
Q: How about the maintenance supporting for engineer?
A: We have the Full foot supporting to keep the safety and also wth the maintenance supporting bar to keep the dock leveler stop there till the woking finished.
