Name: Anti Fire Warehouse High Speed Zipper Door 5 Meter Size
Brand: EVERBESTEN INDUSTRIAL LIMITED
SKU: Z-50
Price: 1,549.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: EVERBESTEN

Certification: CE

Model Number: Z-50

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 1099-1999 / Set

Packaging Details: Negotiable

Delivery Time: 25

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 50 Sets/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Warehouse high speed zipper door, 5 Meter high speed zipper door, Anti Fire Warehouse Speed Doors


Color:	White,grey,red,green,blue	Size:	Max 5 Meter
Certificate:	CE	Surface:	PVC Film
Frame Material:	Hot Dip Galvanized Steel	Open Way:	Automatic Or Manual
Apperance:	Simple And Elegance	Door Viewing:	Standard Size
Max Opening Speed:	2.0m /sec	Safety Control System:	Self Repaired

Color:	White,grey,red,green,blue
Size:	Max 5 Meter
Certificate:	CE
Surface:	PVC Film
Frame Material:	Hot Dip Galvanized Steel
Open Way:	Automatic Or Manual
Apperance:	Simple And Elegance
Door Viewing:	Standard Size
Max Opening Speed:	2.0m /sec
Safety Control System:	Self Repaired

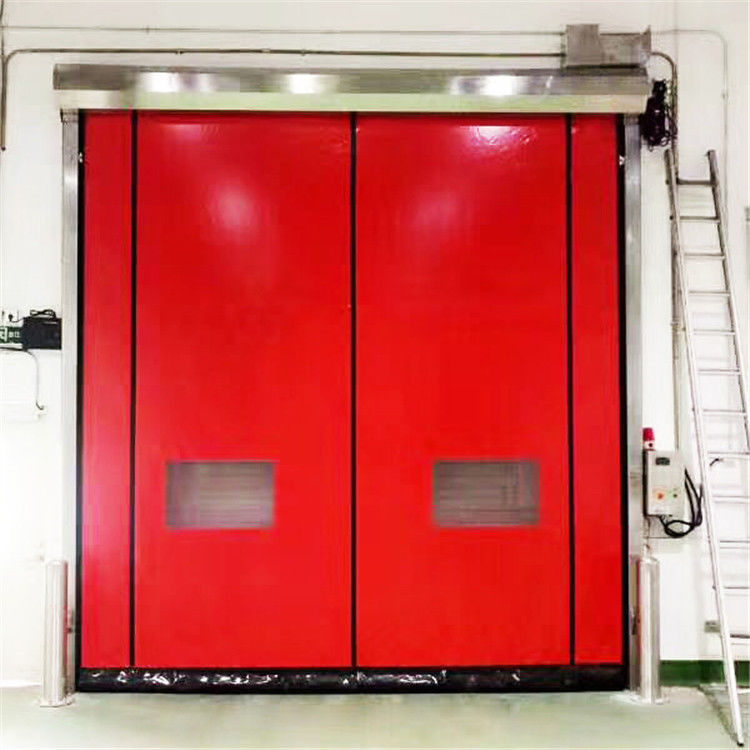

Anti Fire Warehouse High Speed Zipper Door 5 Meter Size

Product select

Anti Fire Warehouse High Speed Zipper Door 5 Meter Size 1

Product display

What is the feature of high speed zipper door?

1	Hot Dip Galvanized steel 2.0 mm thickness Frame
2	0.8mm thickness self-cleaning material coated curtain (900 G per square)
3	Tamagawa loopy absolute encoder
4	B2 anti-fire and UV resistance curtain material
5	IP 54 Insulation protection
6	Sagittal mute brake which use counter emf to ensure the exact stopping or keeping position
7	Omron Saftey protection switch
8	Bottom air bag design to meet rugged ground
9	Push button with one-key emergency stopping
10	Standard Power Supply: 220v/single Phrase/50Hz
11	Control box size: 320 X 400 X 210 mm
12	PVC base with double lines brushes sealing system
13	Standard Multiple functions control terminals
14	Wind resistance: 10m/s

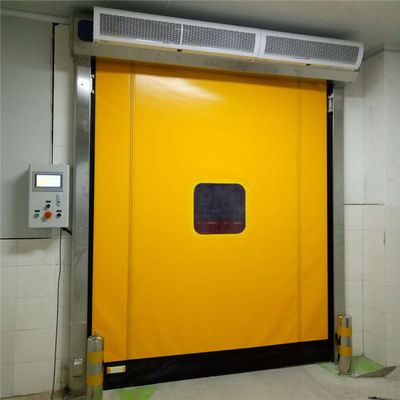

zipper door Show:

What is the detail to support the door smooth operation?

1	Out Performance with 304 SUS as rail, shaft cover to meet the clean room application
2	Anti Button to avoid the curtain came out caused by wind resistenance
3	Self -Repair function to avoid the hittting of the forlift
4	Absolute encoder is to confirm the position based on memory although power off and power on
5	Bottom beam has the shoulder protection
6	Safety photo cell is to avoid the door run down to touch the object and keeps safety
