Custom Plastic Film Repair Dust Barrier High Speed Zipper Door for Industrial

Minimum Order Quantity:	1
Price:	USD 1099-1999 / Set
Packaging Details:	Negotiable
Delivery Time:	25
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 Sets/Month

Contact Now

Detailed Product Description

Product select

What is the feature of high speed zipper door?

1	Hot Dip Galvanized steel 2.0 mm thickness Frame
2	0.8mm thickness self-cleaning material coated curtain (900 G per square)
3	Tamagawa loopy absolute encoder
4	B2 anti-fire and UV resistance curtain material
5	IP 54 Insulation protection
6	Sagittal mute brake which use counter emf to ensure the exact stopping or keeping position
7	Omron Saftey protection switch
8	Bottom air bag design to meet rugged ground
9	Push button with one-key emergency stopping
10	Standard Power Supply: 220v/single Phrase/50Hz
11	Control box size: 320 X 400 X 210 mm
12	PVC base with double lines brushes sealing system
13	Standard Multiple functions control terminals
14	Wind resistance: 10m/s

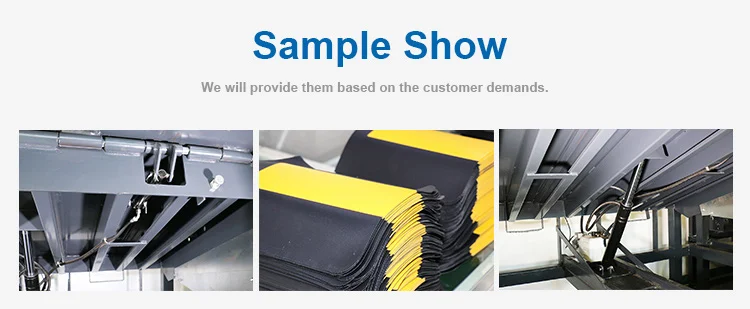

zipper door Show:

What is the detail to support the door smooth operation?

1	Out Performance with 304 SUS as rail, shaft cover to meet the clean room application
2	Anti Button to avoid the curtain came out caused by wind resistenance
3	Self -Repair function to avoid the hittting of the forlift
4	Absolute encoder is to confirm the position based on memory although power off and power on
5	Bottom beam has the shoulder protection
6	Safety photo cell is to avoid the door run down to touch the object and keeps safety
