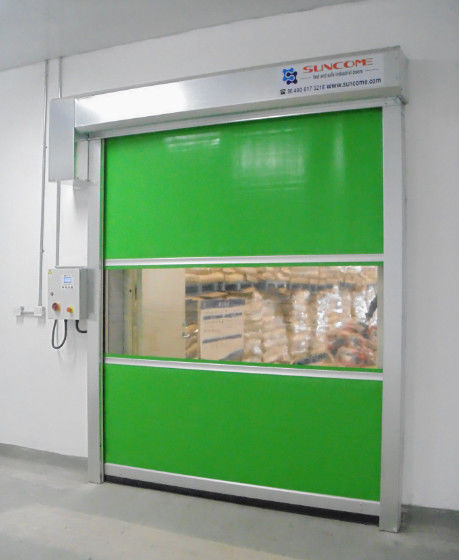

Green PVC High Speed Doors Wind Load Area with Viewing Window

Green PVC High Speed Doors Wind Load Area with Viewing Window

    • Green PVC High Speed Doors Wind Load Area with Viewing Window
    • Green PVC High Speed Doors Wind Load Area with Viewing Window
  • Green PVC High Speed Doors Wind Load Area with Viewing Window

    Product Details:

    Place of Origin: China
    Brand Name: SUNCOME
    Certification: CE/ISO9001:2008
    Model Number: H2800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: Standard Plywood Package
    Delivery Time: 25 working days after received your payment
    Payment Terms: T/T
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Product Name: High Speed Plastic Door Application: High Frequent Using For Outside Application
    Thickness Of Curtain: 1.2mm PVC Ambient Temperature: ≥0 ℃
    Opening Speed: 1.2m/s Closing Speed: 0.8m/s
    Standard Frame: 304 Stainless Steel Model: Inside Speed Door

    Green PVC High Speed Doors Wind Load Area with Viewing Window



    Main feature:

    H2000(The most economical price) durable high speed door is very suitable for the demands of general
    frequent using in interior wind load area.
    Further, with the optional stronger wind-bar, it can meet the demands of exterior application.


    Curtain Color

    Blue, Orange,Yellow, Red, Grey, White,Green.

    Viewing Window

    Full transparent 1.5mm PVC window.

    Power supply

    AC 220V - 240V,Single- 3 Phrase, 50HZ

    Anti-bar width

    60mm or stronger anti-wind pipe

    Temperature

     -7 to 65 Celsius degree

    Normal Working

     -5 to 65 Celsius degree

    Standard Motor Position

     Left

    Installation Base

     Concrete,Panel, Brick,Steel Structure.

    Installation Space

    ≥600mm above the door
    ≥600mm for motor side
    ≥200mm for non-motor side
    ≥800mm in front of the door

    Using Area

    For Production Line



    The charactor of Automatic and  High Performance Speed Door:

    Automatic and High Performance Speed Door  is the solution to the high-level clean environment which needs prevent
    dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,
    especially for the food,pharmacy, and fine machining industry.

    • Safe and stable operation during the whole processing.
    • More durable by the unique and professional curtain material.
    • More beautiful/elegent appearance.
    • Anti-bacteria protection system.
    • Our owned Trade - Mark and professional developing & researching team.
    • Sustained innovation on the product.

    Specialty


    Technical Parameter for speed door

    Max Size

    5000mm(W)*5000mm(H)

    Opening Speed

    1.0m/s

    Closing Speed

    0.6m/s

    Wind load Max

    28m/s

    Mechanical Unit

    Frame

    304 Stainless Steel

    Inner Frame

    Anti-wear Nylon Molded Inner frame

    Thickness of frame

    2.0mm Stainless Steel

    Thickness of shaft cover

    1.5mm 304 Stainless Steel

    Motor cover

    Yes

    Frame Size

    120mm*120mm

    Control Unit

    Control system

    S150 FU Micro-processor

    English Man-Machine Interface

    Self Trouble-Shooting Recognizing system

    Bigger LED Screen



    Control Box Size

    320 X 400 X 210 mm

    Driving System

    Feature

    Absolutely Encoder

    Driving Unit Brand

    ABB Motor

    Driving Unit Brand

    Yaskawa Frequent Convert

    Activation System

    Open and Close the door

    Radar

    Induction Loop

    Remote

    Card Sensor

    Pull Cord

    Push Button

    Touching Panel for Cleaning Room

    Central-Computer Controlling

    Safety System

    Safe Equipment

    Beep

    Anti-wind Bar

    Traffic Light

    Wireless safety Edge

    Built-in Photo Cell





    Emergency Handle





    Shoulder Protection


    Why Choose us?

    • CE Certification: patent number--2012204951286;201220495059
    •                                                      ISO NO: 00913Q12336ROS
    • Customized products for clients
    • Designed for the long term, high frequent operating with reasonable price
    • High quality and high performance.
    • Pofessional researching and developing innovation on products.


    Green PVC High Speed Doors Wind Load Area with Viewing Window
    Green PVC High Speed Doors Wind Load Area with Viewing Window
